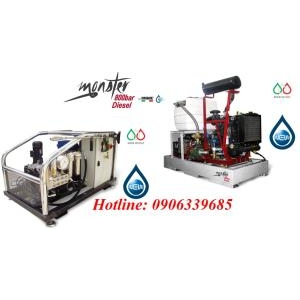

The “Monster” among hydro-operating units

Monster 800 bar Diesel is an extract of power, quality and reliability designed and produced for heavy-duty continuous use, in very high pressure. For example:

• descaling
• stripping
• paint removal and washing of ship keel
• removal of deteriorated concrete
• hard washing in the agricultural and industrial sectors

Monster 800 bar Diesel is s a hydro-operating unit that allows to be independent from the electric supply. It is designed with the goal of supplying a machine that, for its power, quality and reliability, can be used in the heavy industry and in shipyards.

Technical features

• Strong frame palletized frame set with painted steel base.
• Industrial pump with crankshaft, body in die-castaluminium stainless steel head, conical shaft bearings, aluminium alloy connecting rods, forged steel crankshaft, crankshaft sealings in viton, guide pistons in surface-treated cast iron, full ceramic plungers and stainless steel valves
• Diesel engine, Lombardini, 50 Kw, 67 Hp, 3000 Rpm, 4 cylinders, 2200 cm3, water-cooled.
• Feeding pump complete with pressure gauge,to assure a steady quantity of water and pressure to the pump in h.p.
• Pressure gauge.
• Safety regolation controls monster is completed with a safety valve for high pressure line, adjustament valve to regulate the pressure dimentioned on the operating range.
• Alarm installed, a sound alrm too low water level in the tank and engine ct-off for lack water to the pump.
• Water filter with stainless steel cartridge 50 mesh filtration degree.
• Control panel complete with: starting key, rev indicator rated for 3000 Rpm, manual throttle, time-counter, fuel level gauge. Warning lights to high oil temperature, lou oil pressure, air filter clogged, alternator, glow plugs and emergency head for immediate turning off.
• H.p. hose, 3/8”, 20 mts with screw quick couplings.
• Lance complete with gun and shoulder rest with by-pass system and discharge to lose.
• Rotating nozzle.

Standard equipment

• H.p. hose, 20 mts with screw quick couplings
• Lance complete with gun and shoulder rest
• Rotating nozzle.
